Hello,

I need to create a graph with the total power for each day, but i need to be able to filter by power absorbed in period.

For example, I have a load that consumes 3KW in standby and >10KW when working.

I would like a total of the kW consumed in the periods below 5kw and one above.

Is it possible to do this with the dashboard tools?

Thank a lot!!

Massimo.

How can I change the scale of the axis? For example, I measure a Voltage of 5 Volts. Until 2 days ago, the right axis had (automatically) a maximum range of 5. Since yestrday, the maximum value of the axis is 50 Volt, therefore the height of my voltage-line is only 10 percent of the height of the screen. Thank you and best regards Kurt Böhm

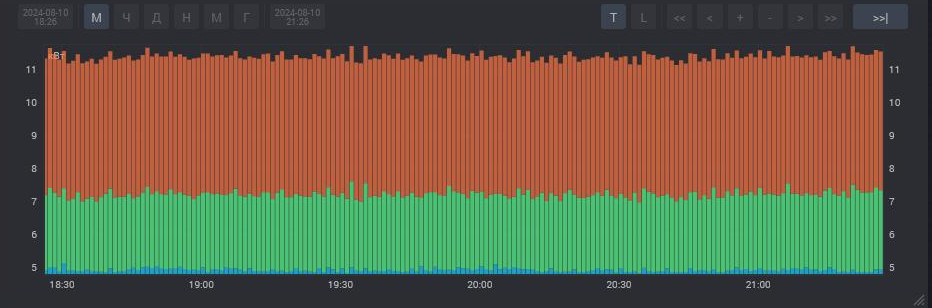

Почему этот график не с нуля? И как сделать его с нуля?

Hello.

I am using a D105 G4 in pulse counting mode for tracking the output productivity of a stamping machine. The machine is working in 2 schifts daily.  Everything is working well, I am getting the total value daily for both shifts that are working on that machine.

but i want to be able to split the graph into 2 working schedules : 07:00-15:00 and 15:00-23:00, so i can find out wich shift is more productive .

I need some output conditioning by time , or something similar. Can this be done ?

Now I have this :

And would like something like this :

Hello,

How can I change the dashboard theme from black to white?

It is sometimes easier to read charts / graphs on a white background.

Thanks in advance for your help.
