CSV export examples for every sensor product in shop

Hello

View the API description in the Knowledge Base

https://support.smart-maic.com/ru/knowledge-bases/2/articles/40-api-dlya-ustrojstv

Using the API, you receive raw data from the D105 device.

There is no description of which sensor is connected to the D105; you must know this yourself.

For example, if to D105 is connected:

Water Flow Sensor - see data [TCh1] and [TCh2]
Wind Direction Sensor - see data [T5]
Solar Radiation Sensor - see data according to your Modbus setup
and so on

Hello

Just trying to understand if I purchased Water Flow Sensor / Wind Direction  Sensor, etc., how would it report here?

Can you provide example screenshot of CSV or JSON from API?

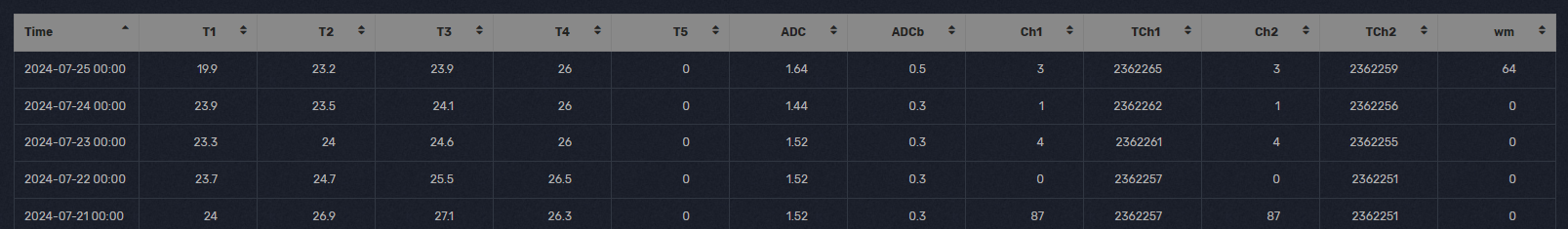

Your screenshot from the energy monitor D101/D103

The sensors are connected to the D105 device, it has other data

Water Flow Sensor - see data [TCh1] and [TCh2]
Wind Direction Sensor - see data [T5]
Solar Radiation Sensor - see data according to your Modbus setup

JSON from API:

{
"devid": "1761607682",
"time": "1721894684",
"pout": "0",
"data": {
"T1": {
"name": "1. CH Return - T3",
"unit": "",
"value": "24.0"
},
"T2": {
"name": "2. CH Flow - T2",
"unit": "",
"value": "23.5"
},
"T3": {
"name": "3. Indoors - T4",
"unit": "",
"value": "25.7"
},
"T4": {
"name": "4. Outside - T1",
"unit": "",
"value": "25.2"
},
"ADC": {
"name": "Analog Input",
"unit": "V",
"value": "1.25"
},
"Battery": {
"name": "Battery",
"unit": "V low battery",
"value": "0.5"
},
"Ch1": {
"name": "Pulse Ch1",
"unit": "imp",
"value": "0"
},
"Ch2": {
"name": "Pulse Ch2",
"unit": "imp",
"value": "0"
},
"TCh1": {
"name": "Total Pulse Ch1",
"unit": "imp",
"value": "2362265"
},
"TCh2": {
"name": "Total Pulse Ch2",
"unit": "imp",
"value": "2362259"
}
}
}
