D105: Modbus Server mode. Clarifications on reading registers

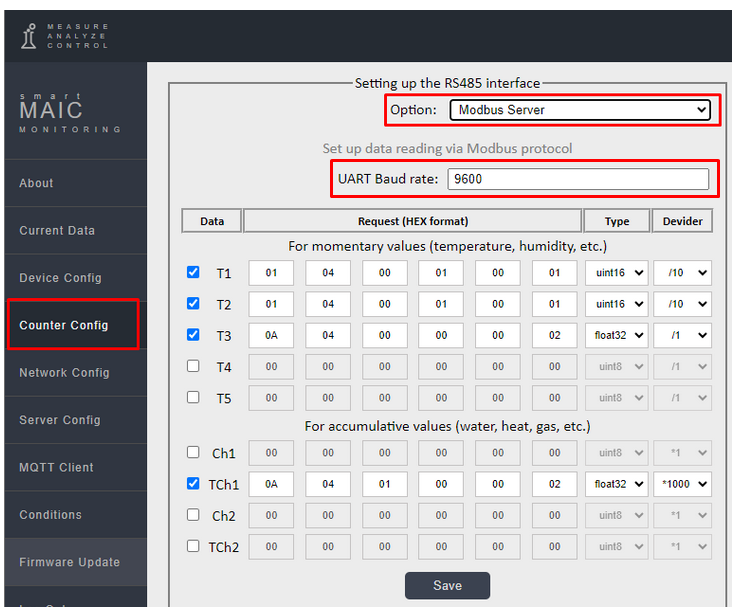

Hi, from your support I understand that I can read up to 5 registers of actual values and 2 registers of accumulation values. So I can read up to 7 registers. Can there be 7 registers of a single slave device or 1 register of 7 slave devices?
Сервис поддержки клиентов работает на платформе UserEcho
Yes, you are right, you can read up to 7 registers.
It can be 7 different slave devices.
if for example there are 7 different slave modes, is it possible to read different baud rates with just one D105?
There is only one baud rate for all slave devices. (max макс. 57600)
Yes exactly. Thank you!
