Install three-phase energy meter D103

The D101 can be installed in an electrical panel on a DIN rail or on a wall using the DIN rail strip that is supplied in the kit.


The device should be connected to the power grid by trained personnel with a minimum of group III approval for electrical safety when working on installations up to 1000 V.

Depending on the configuration, the device can be supplied with transformers of different types:

  • Type 1 - transformer ring, connects to pins 3-4 of the deviceа
  • Type 2 - plug-in transformer, is connected to the socket 5 of the device.

To connect the device, follow these steps:

  • Slide the current transformer on the phase conductor.
    The transformer has an energy direction indicator, from the electricity meter towards the consumers.
  • Connect the current transformer wires to the device in accordance with the wiring diagram.
  • Connect the phase and neutral wires to the device in accordance with the wiring diagram.

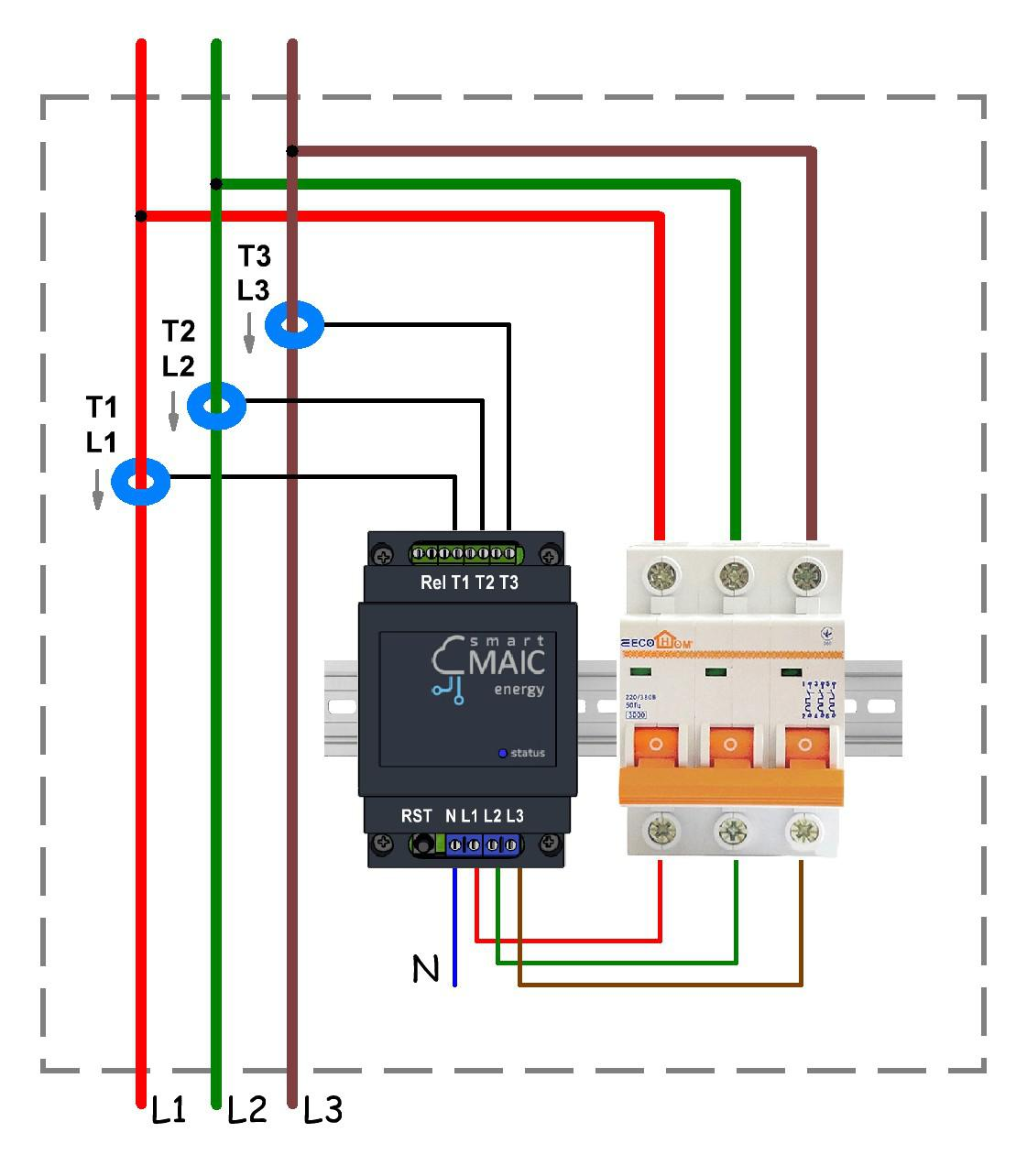

General connection diagram

Image 1273

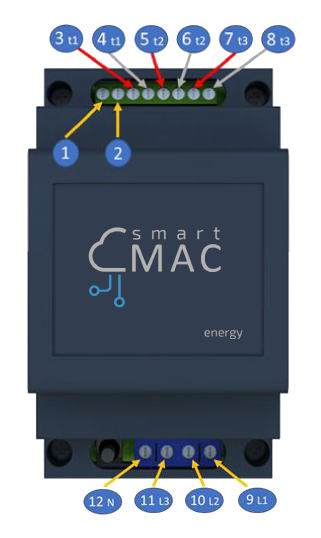

Connection diagram for rings 100A current transformers

Image 93

Top group of contacts

1 - controlled output

2 - controlled output

3 - current transformer №1, red wire

4 -current transformer №1, black wire

5 - current transformer №2, red wire

6 -current transformer №2, black wire

7 - current transformer №3, red wire

8 -current transformer №3, black wire

Bottom group of contacts
9 - phase 1

10 - phase 2

11 - phase 3

12 - zero

WARNING :
Incorrect wiring of the phase wire may damage the device.

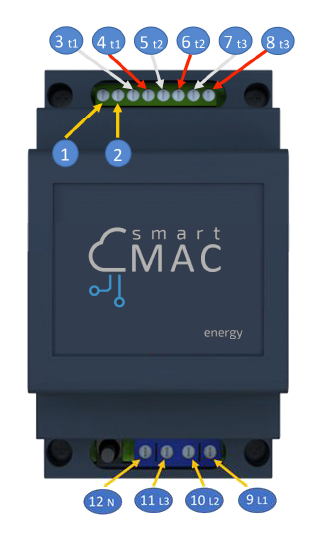

Connection diagram for clips 300A/600A current transformers

Image 168

Top group of contacts

1 - controlled output

2 - controlled output

3 - current transformer №1, white wire

4 -current transformer №1, black wire

5 - current transformer №2, white wire

6 -current transformer №2, black wire

7 - current transformer №3, white wire

8 -current transformer №3, black wire


Bottom group of contacts
9 - phase 1

10 - phase 2

11 - phase 3

12 - zero

Successful measurements!
