Power calculation from pulse

vida 2 months ago in Dashboard and Widgets updated by Support Manager 1 month ago 3

How i can calculate the power from the pulse data  ?  In this case I have  6.25 pulse = 1kWh

Answered

Hello,

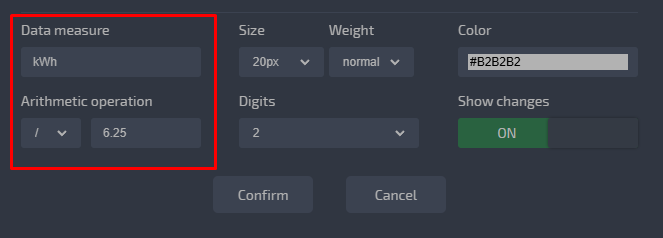

In the widget settings, in the arithmetic operation, select / 6.25
As a result, there will be kW

Image 2552

Hi. Thanks fot the answer.

I can understano this but i still have problem in  "Now" sheet of this dashboard. Often (expecially by mobil phone) i just see zero value.

probably this happens because the pulse frequency is quite low and we can have no pulse il the "now time".

Image 2554


So, I'd like to calculate and show the "average power" in 10 seconds or in 1 minute . I haven't foud the way to accumulate pulse in spicific time frame, other then Hour, Day.....

Regards.

That's right, these are cumulative values ​​for impulses, and you can look at intervals of an hour/day/month.

If you need current (instantaneous) values, use the D101/D103 energy monitor.
