the sum of electricity consumption

Jiri 1 month ago in Dashboard and Widgets • updated by Support Manager 1 month ago • 1

Hi,

how can display on dashboard sum of electricity consumption measured by  energy meter D103 and pulse meter D105 ? When I create Virtual value, I'm not able to crate a sum values from this two devices.

Thnx. Jiri

Completed
Support Manager 1 month ago

Hello,

Why not, the virtual value is able to create a sum of values from these two devices.

But you should understand:
- Energy Monitor D103  counts Watts
- Pulse Counter D105 counts pulses, that need to be converted into Watts.


For example, you have 2000 imp per 1 kW, this means 2 imp per 1 watt

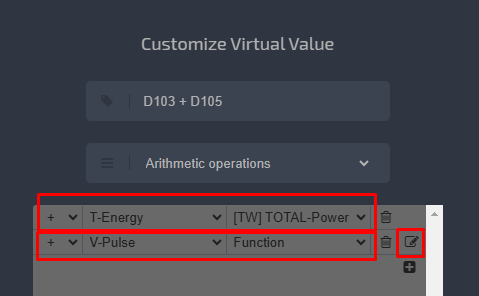

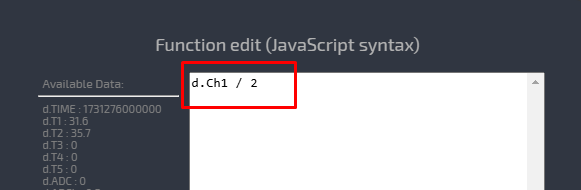

Then the virtual value looks like this (use Function for D105 device):

Image 2445

Image 2446
